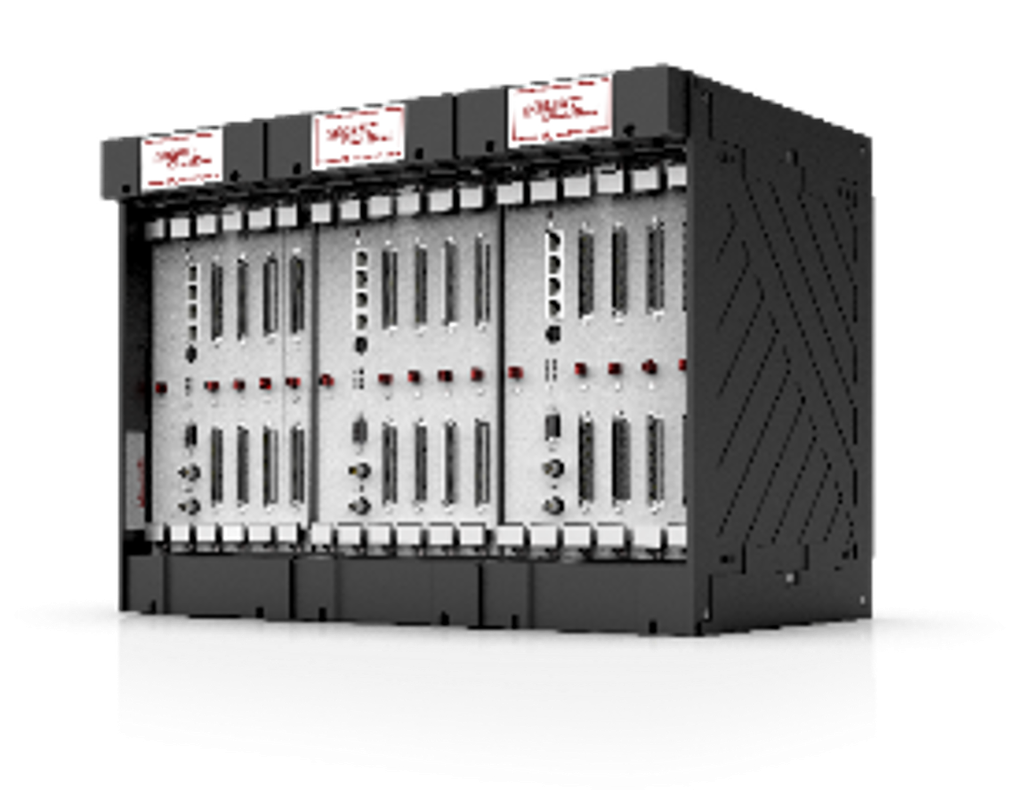

5009XT
Triple-redundant, fault-tolerant control for reliability-critical industrial steam turbines.
Descrizione
Product overview
Built for dependable control and clear integration.
The 5009XT combines the MicroNet TMR hardware platform with dedicated steam-turbine control algorithms. Its modular architecture is designed to maintain operation through a single-point failure and supports online module replacement for high-availability applications.
Configuration reference
Variant overview
| Variant | At Stock | Hardware | Power Supply |
|---|---|---|---|
| 8262-1143 | YES | Without Actuator card | 18-32 VDC |
| 8262-1141 | YES | Without Actuator card | 88-132 VAC/100-150 VDC |
| 8262-1142 | NO | Without Actuator card | 180-264 VAC/200-300 VDC |
| 8262-1144 | NO | With Actuator card | 180-264 VAC/200-300 VDC |
Downloads
Technical documentation
Product specifications
-
5009XT FAULT-TOLERANT CONTROL – Product Specification.pdfDownload PDF
-
5009XT VIEW – Product Specification.pdfDownload PDF
Technical manuals
-
5009XT DIGITAL CONTROL FOR STEAM TURBINES – Technical Manual V1.pdfDownload PDF
-
5009XT DIGITAL CONTROL FOR STEAM TURBINES – Technical Manual V2.pdfDownload PDF
-
5009XT DIGITAL CONTROL FOR STEAM TURBINES – Technical Manual V3.pdfDownload PDF
