Product overview
Built for dependable control and clear integration.

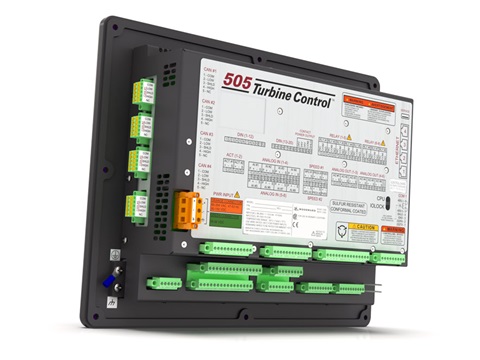

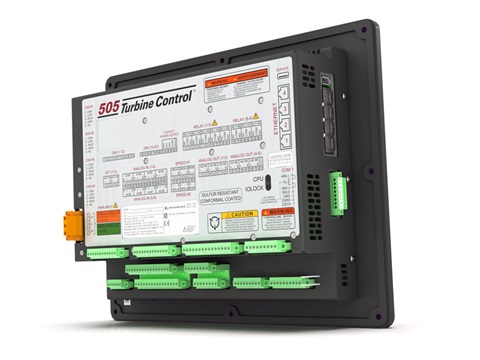

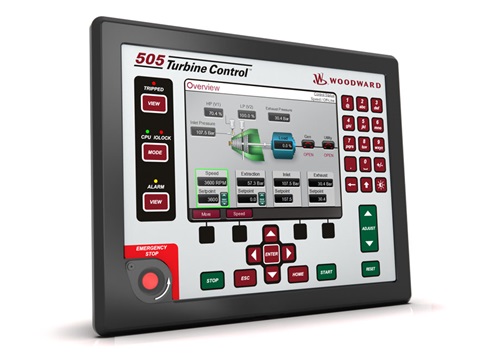

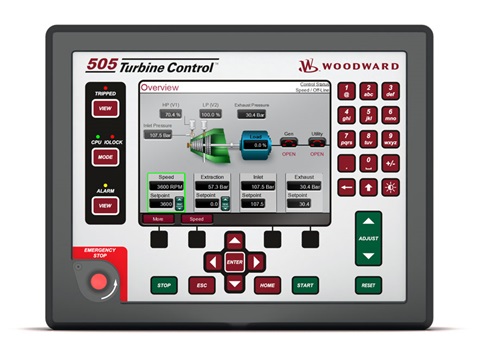

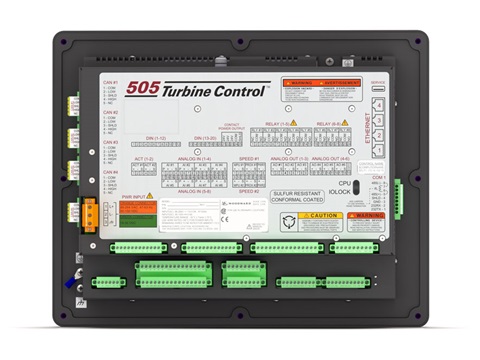

The 505XT manages turbine start-up, shutdown, speed, load and process-control duties for generator and mechanical-drive applications. Configurable control loops support single-valve and extraction or admission turbines across a wide range of plant arrangements.
Configuration reference
Variant overview
| Variant | At Stock | Power Supply | Type |
|---|---|---|---|
| 8200-2312 | YES | LVDC (18–36 VDC) | Standard & ATEX Compliance |
| 8200-1310 | YES | LVDC (18–36 VDC) | Standard Compliance |
| 8200-1311 | YES | AC/DC (88–264 VAC or 90–150 Vdc) | Standard Compliance |
Downloads
Technical documentation
Product specifications
- 505XT DIGITAL CONTROL FOR STEAM TURBINES.pdfDownload PDF
- REMOTEVIEW OPERATOR INTERFACE SOFTWARE FOR 505.pdfDownload PDF
Technical manuals
- 505XT DIGITAL CONTROL FOR STEAM TURBINES V1- Technical manual.pdfDownload PDF
- 505XT DIGITAL CONTROL FOR STEAM TURBINES V2- Technical manual.pdfDownload PDF
- 505XT DIGITAL CONTROL FOR STEAM TURBINES V3- Technical manual.pdfDownload PDF
