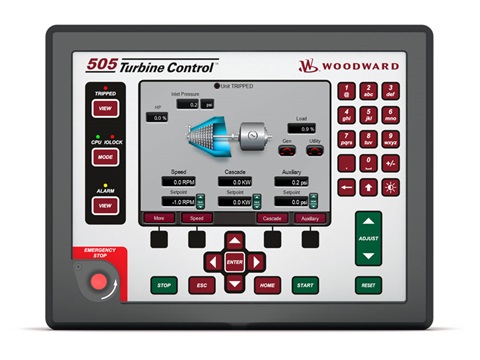

CONTROL-505D STEAM TURBINE CONTROL
A digital controller for industrial steam turbines across generator and mechanical-drive duties.
Descrizione
Product overview
Built for dependable control and clear integration.
The 505D integrates algorithms for turbine start, stop, speed, load and process control. Its configurable PID structure supports steam-header, extraction, inlet and tie-line control requirements while maintaining clear operator access and diagnostics.
Configuration reference
Variant overview
| Variant | At Stock | Power Supply | Type |
|---|---|---|---|
| 8200-2302 | YES | LVDC (18–36 VDC) | Standard & ATEX Compliance |
| 8200-1300 | YES | LVDC (18–36 VDC) | Standard Compliance |
| 8200-1301 | YES | AC/DC (88–264 VAC or 90–150 Vdc) | Standard Compliance |
Downloads
Technical documentation
Product specifications
- 505 DIGITAL CONTROL FOR STEAM TURBINES – Product Specification.pdfDownload PDF
Technical manuals
- 505 DIGITAL CONTROL FOR STEAM TURBINES – Technical manual V1.pdfDownload PDF
- 505 DIGITAL CONTROL FOR STEAM TURBINES – Technical manual V2.pdfDownload PDF
