CONTROL-EASYGEN-3400-3500XT

Descrizione

Product overview

Built for dependable control and clear integration.

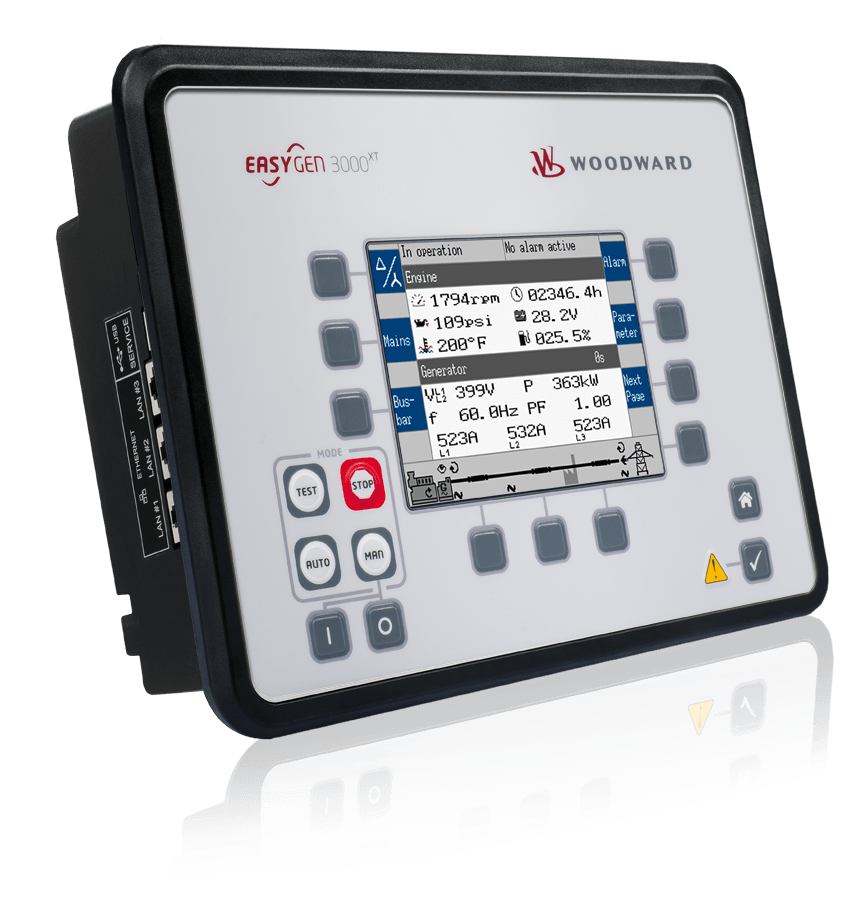

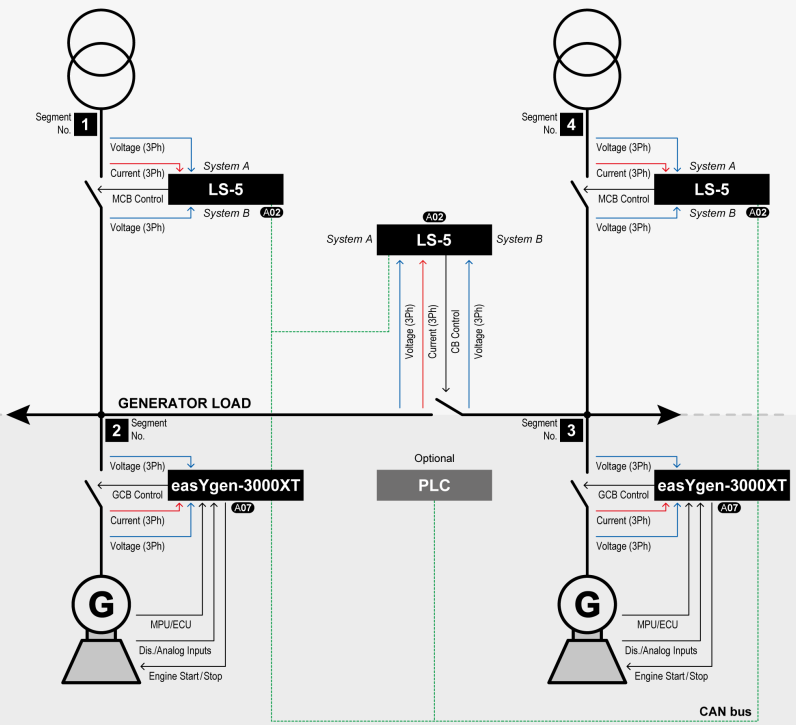

The easYgen 3400XT and 3500XT coordinate fleets of up to 32 generator sets across islanded, utility-parallel, emergency, import/export and cogeneration duties. Integrated protection, communications and configurable logic support scalable power-management architectures.

Configuration reference

Variant overview

Variant	At Stock	Hardware	Housing type	Environment
8440-2085	YES	DI:12, DO:12, AI:3, AO:2	Housing suitable for door mounting	Standard
8440-2086	NO	DI:12, DO:12, AI:3, AO:2	Housing suitable for door mounting	Extended Temperature Range
8440-2084	YES	DI:12, DO:12, AI:3, AO:2	Cabinet back mounting w/o display	Extended Temperature Range
8440-2088	YES	DI:23, DO:22, AI:10, AO:6	Housing suitable for door mounting	Standard
8440-2089	YES	DI:23, DO:22, AI:10, AO:6	Housing suitable for door mounting	Extended Temperature Range
8440-2087	YES	DI:23, DO:22, AI:10, AO:6	Cabinet back mounting w/o display	Extended Temperature Range
