easYgen 3100 3200 XT Series
Multi-unit genset control for paralleling up to 32 generators in islanded or utility-connected systems.
Descrizione
Product overview
Built for dependable control and clear integration.

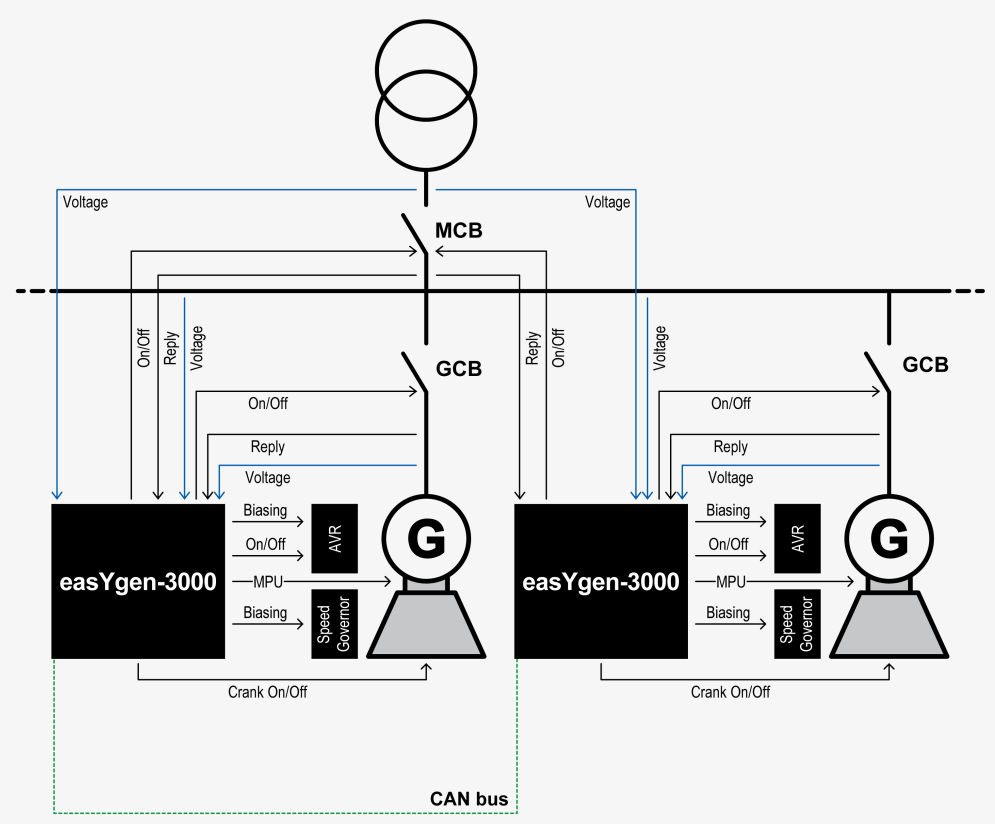

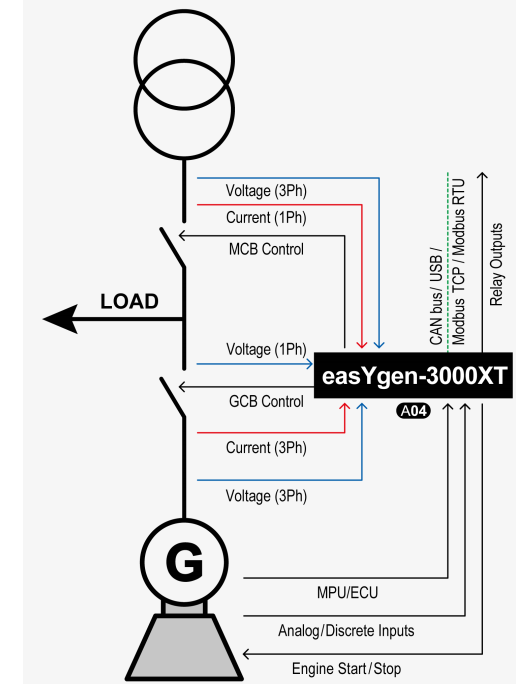

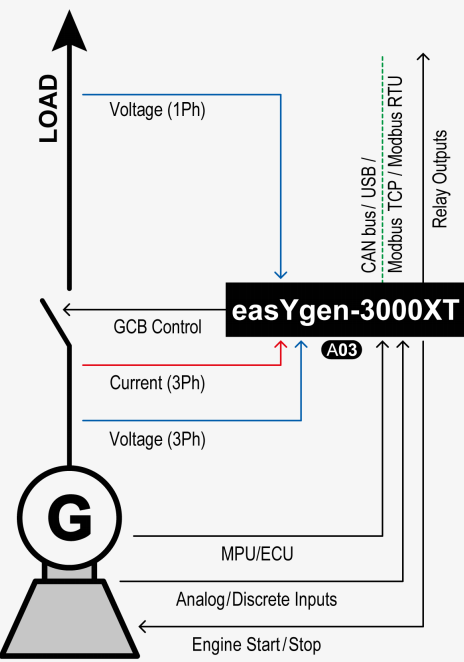

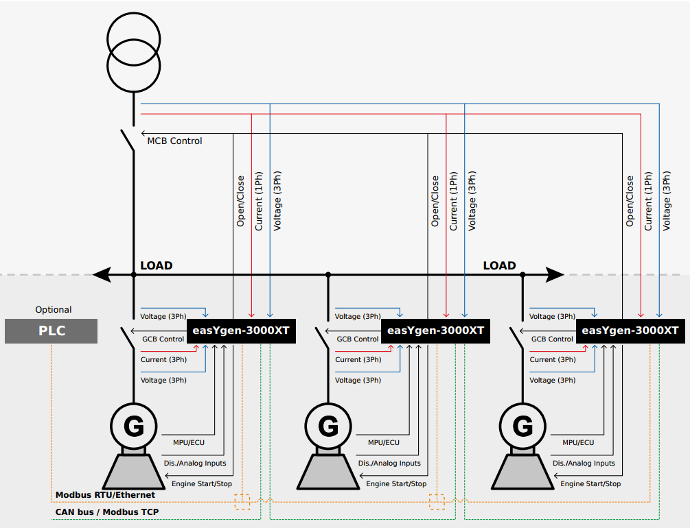

The easYgen 3100XT and 3200XT coordinate synchronisation, load sharing, import/export and automatic mains-failure duties. Integrated protection, configurable logic and Ethernet, CAN and serial communications support scalable generator installations.
Configuration reference
Variant overview
| Variant | At Stock | Hardware | Housing type | Environment |
|---|---|---|---|---|

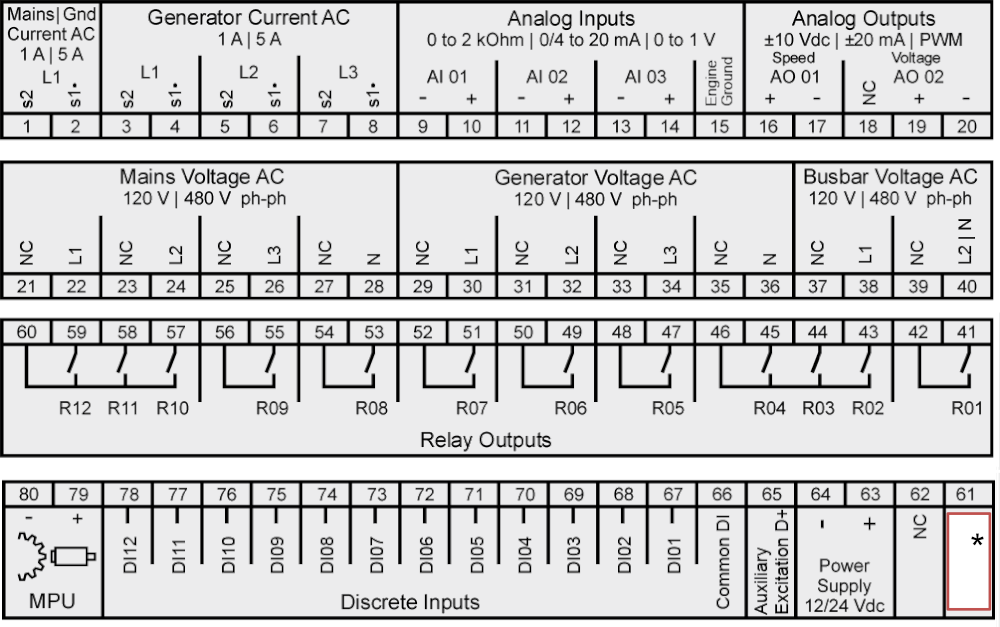

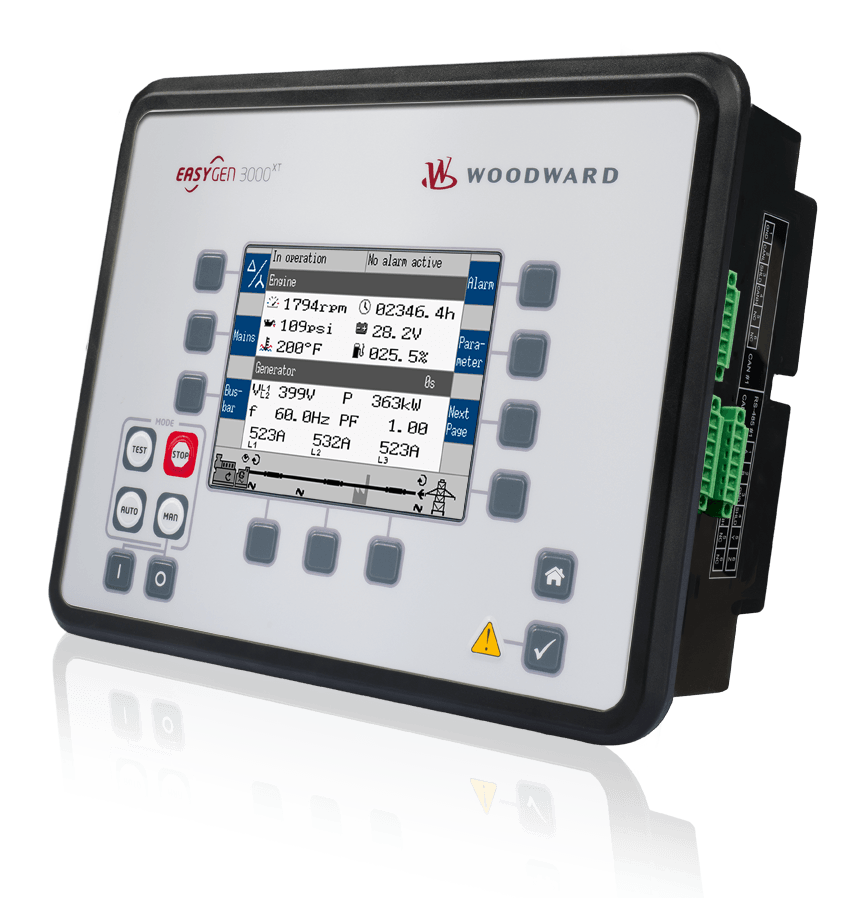

| 8440-2082 | YES | DI:12, DO:12, AI:3, AO:2 | Housing suitable for door mounting | Standard |
| 8440-2083 | YES | DI:12, DO:12, AI:3, AO:2 | Housing suitable for door mounting | Extended Temperature Range |
| 8440-2081 | YES | DI:12, DO:12, AI:3, AO:2 | Cabinet back mounting w/o display | Extended Temperature Range |
Downloads
Technical documentation
Product specifications
- easYgen 3100 3200 XT Series – Product Specification.pdfDownload PDF
- EASYGEN-3100XT-3200XT-P1 PRODUCT SPECIFICATION (GERMAN).pdfDownload PDF
- EASYGEN-3100XT-3200XT-P1 PRODUCT SPECIFICATION (ITALIAN).pdfDownload PDF
Technical manuals
- easYgen 3100 3200 XT LITE.pdfDownload PDF
- EASYGEN-3100XT-3200XT-P1.pdfDownload PDF
- TOOLIKIT MANUAL FOR EASYGEN3000XT-SERIES.pdfDownload PDF
