LECM – E6

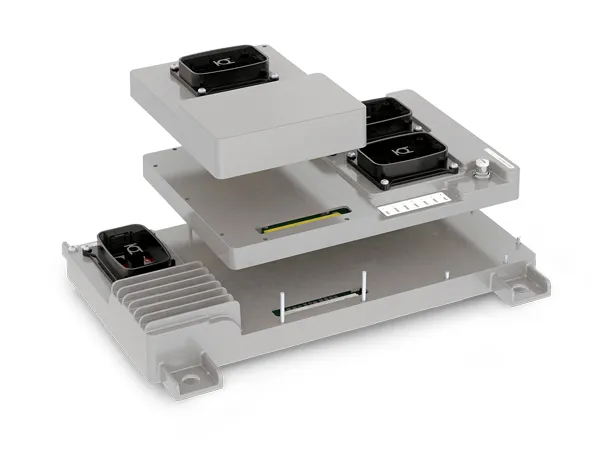

A modular, engine-mounted control platform for gas, diesel and dual-fuel reciprocating engines, available in stand-alone, 2-stack and 3-stack configurations.
Description
Product overview
One engine-mounted platform, configured around the application.
The Woodward Large Engine Control Module (LECM) provides a modular, single-box control architecture for large gas, diesel and dual-fuel reciprocating engines. Stand-alone, 2-stack and 3-stack configurations allow the control platform to be matched to power-generation, marine-propulsion and industrial-engine duties.
Depending on the selected module combination, LECM can coordinate speed and load, air-fuel ratio, ignition or injection, knock and misfire monitoring, air, gas and exhaust flow, start-stop sequencing, protection, onboard data logging and communications. Each module has its own processor and application software while sharing information across the assembled system.
TURNER ECS can assess the engine, operating modes, field interfaces and validation requirements before defining the correct hardware and application scope.
Modular architecture
Build the control around the required engine functions.

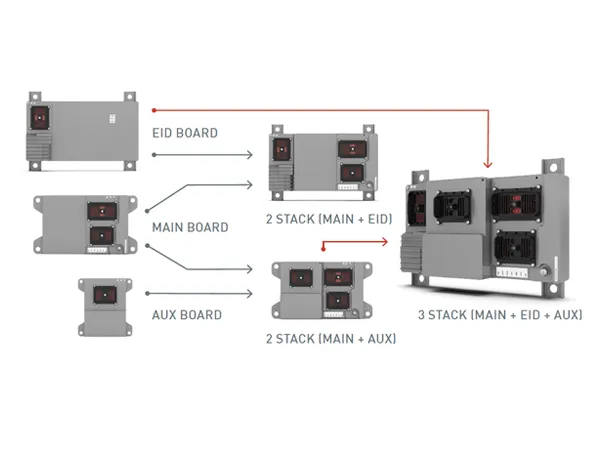

The platform is available as individual MAIN, Electronic Ignition/Injection Driver (EID) and Auxiliary (AUX) modules, or as integrated MAIN + EID, MAIN + AUX and MAIN + EID + AUX stacks.
| Module | Primary role | I/O scope | Communications |
|---|---|---|---|
| MAIN | Core engine I/O and control functions | Digital, analogue, temperature, oxygen and speed-sensor inputs with digital, pulse-width modulation and analogue outputs | 3 CAN, RS-485, RS-232 and Ethernet |
| EID | Electronic ignition or injection drive | Speed-sensor and digital inputs with 20 ignition or injection drivers and a high-side digital output | 2 CAN |
| AUX | Extended knock, pressure and temperature monitoring | 24 configurable knock, pressure or thermocouple inputs plus speed inputs, high-side digital outputs and analogue outputs | 1 CAN |
Available products
LECM – E6 application configurations
Part numbers and configuration descriptions are taken from the supplied Woodward Industrial Turbine Products Catalog extract. Availability and application suitability must be confirmed before ordering.
| Part number | Configuration |
|---|---|
| 8280-4003 | E6 3-stack, lean-burn, 20 ignition, 10 knock, 14 thermocouple channels |
| 8280-4041 | E6 3-stack, lean-burn, 20 ignition, 16 knock, 8 thermocouple channels |
| 8280-4043 | E6 2-stack, lean-burn, 20 knock channels |
| 8280-4045 | E6 2-stack, lean-burn, 20 ignition channels |
| 8280-4046 | E6 lean-burn, stand-alone MAIN module |
| 8280-4048 | E6 2-stack, rich-burn, 20 ignition channels |
| 8280-4049 | E6 rich-burn, stand-alone MAIN module |
| 8280-4051 | E6 3-stack, rich-burn, 20 ignition, 16 knock, 8 thermocouple channels |
| 8280-4053 | E6 3-stack, rich-burn, 20 ignition, 20 knock channels |
| 8280-4059 | E6 3-stack, rich-burn, 20 ignition, 10 knock, 14 thermocouple channels |
| 8280-4061 | E6 3-stack, lean-burn, 20 ignition, 20 knock channels |
Configuration reference
Generic and application-specific configurations
| Part number | Configuration |
|---|---|
| 8280-4063 | Generic stand-alone AUX, real-time combustion diagnostics and control (RT-CDC), 10 fast 4-20 mA channels, 14 thermocouple channels |
| 8280-4073 | Generic 3-stack: MAIN; AUX RT-CDC with 10 fast 0-5 V channels and 14 thermocouple channels; EID with 20 drivers |
| 8280-4074 | Generic 2-stack: MAIN; AUX RT-CDC with 10 fast 0-5 V channels and 14 thermocouple channels |
| 8280-4075 | Generic stand-alone AUX RT-CDC with 10 fast 0-5 V channels and 14 thermocouple channels |
| 8280-4082 | Stand-alone MAIN module for marine-engine propulsion |
| 8280-4084 | Generic 2-stack MAIN + AUX protection/I/O module with 16 slow 4-20 mA channels and 8 thermocouple channels |
| 8280-4088 | Generic stand-alone AUX protection/I/O module with 16 slow 4-20 mA channels and 8 thermocouple channels |
| 8280-4089 | Generic 3-stack protection/I/O configuration with 16 slow 4-20 mA channels and 8 thermocouple channels |
| 8280-4400 | Generic 2-stack: MAIN + EID with 20 drivers |
| 8280-4401 | Generic 3-stack: MAIN; AUX with 8 knock, 8 fast 0-5 V and 8 thermocouple channels; EID with 20 drivers |
| 8280-4402 | Generic stand-alone EID with 20 drivers |
| 8280-4403 | Generic 3-stack: MAIN; AUX RT-CDC with 10 fast 4-20 mA channels and 14 thermocouple channels; EID with 20 drivers |
| 8280-4404 | Generic 3-stack: MAIN; AUX with 10 knock and 14 thermocouple channels; EID with 20 drivers |
| 8280-4405 | Generic 3-stack: MAIN; AUX with 16 knock and 8 thermocouple channels; EID with 20 drivers |
| 8280-4406 | Generic 2-stack: MAIN + AUX with 10 knock and 14 thermocouple channels |
| 8280-4408 | Stand-alone MAIN module |
| 8280-4409 | Generic stand-alone AUX with 24 thermocouple channels |
| 8280-4410 | Generic 3-stack: MAIN; AUX with 24 thermocouple channels; EID with 20 drivers |
| 8280-4411 | Generic 3-stack: MAIN; AUX RT-CDC with 2 fast 4-20 mA, 2 fast 0-5 V and 20 knock channels; EID with 20 drivers |
| 8280-4412 | Generic 2-stack: MAIN + AUX RT-CDC with 2 fast 4-20 mA, 2 fast 0-5 V and 20 knock channels |
| 8280-4413 | Generic stand-alone AUX RT-CDC with 2 fast 4-20 mA, 2 fast 0-5 V and 20 knock channels |
| 8280-4414 | Generic stand-alone AUX RT-CDC with 1 slow 0-5 V, 1 fast 0-5 V, 1 slow 4-20 mA, 1 fast 4-20 mA and 20 knock channels |
| 8280-4417 | Generic 2-stack: MAIN + AUX with 24 thermocouple channels |
Installation scope
Kits and accessories
| Part number | Kit or accessory |
|---|---|
| 8923-2031 | LECM vibration-isolation mounting hardware |
| 8923-2049 | LECM small mounting-hardware and vibration-isolation kit |
| 8923-2216 | LECM marine vibration-isolation mounting hardware |
| 8928-7476 | DT06 connector kit for LECM coil |
| 8928-7522 | LECM 3-board stack standard accessories |
| 8928-7525 | LECM MAIN standard accessories |
| 8928-7541 | LECM harness and breakout module |
| 8928-7555 | LECM terminal pins kit |
| 8928-7615 | LECM MAIN kit, R30 series, with LECM accessories |
| 10-020-609 | Element 1 MSeries LECM kit |
| 1698-1230CSA | CSA-certified LECM ignition coil |
| 8928-7490.KIT | Secondary kit for LECM coil |
System capability
Control, diagnostics and service access in one environment.
| Capability | Application value |
|---|---|
| Integrated engine control | Coordinate speed, load, combustion, sequencing, monitoring and protection through one modular control architecture. |
| Application software | Support validated gas, diesel or dual-fuel applications and, where appropriate, application-specific control algorithms. |
| Diagnostics and data | Use onboard monitoring, logging and a common service interface to support commissioning, troubleshooting and lifecycle service. |
| Network integration | Connect through CAN, RS-485, RS-232 or Ethernet interfaces according to module selection and system architecture. |
Technical reference
Key platform specifications.
| Supply voltage | 18-32 Vdc; functional to 9 Vdc during engine cranking |
|---|---|
| Operating temperature | From -40 °C, with the upper limit dependent on the selected module combination; refer to the product specification |
| Storage temperature | -40 to +125 °C |
| Environmental protection | Up to IP69K, subject to configuration and installation requirements |
| Service interface | Configuration, monitoring, data logging and trending through the applicable Woodward service environment |
Technical data is based on Product Specification 03425, Revision A (February 2015), the supplied product brochure and the current Woodward product page. Product availability, configuration, approvals, compliance and application suitability must be confirmed by TURNER ECS for the intended engine and operating environment.
