LINKNET MODULE
A distributed I/O network for extending compatible industrial control platforms.
Description
Product overview
Built for dependable control and clear integration.
LINKnet modules provide a practical way to place monitoring, sequencing and auxiliary I/O closer to the equipment. Multiple network trunks and a simple field connection support scalable control architectures without concentrating every signal in the main cabinet.
Configuration reference
Variant overview
| Variant | At Stock | Hardware | Communication Ports |
|---|---|---|---|
| 8200-1200 | YES | RTD – 8 channel | HT (Simplex CAN |
| 8200-1100 | YES | RTD – 8 channel | RTC (Duplex CAN) |
| 8200-1201 | YES | TC – 8 channel | HT (Simplex CAN |
| 8200-1101 | YES | TC – 8 channel | RTC (Duplex CAN) |
| 8200-1202 | YES | 4-20mA – 8in/2out | HT (Simplex CAN |
| 8200-1102 | YES | 4-20mA – 8in/2out | RTC (Duplex CAN) |
| 8200-1203 | YES | 4-20mA – 8in/2out, 24VDC loop power | HT (Simplex CAN |
| 8200-1103 | YES | 4-20mA – 8in/2out, 24VDC loop power | RTC (Duplex CAN) |
| 8200-1204 | YES | DI – 16 channel | HT (Simplex CAN |
| 8200-1104 | YES | DI – 16 channel | RTC (Duplex CAN) |

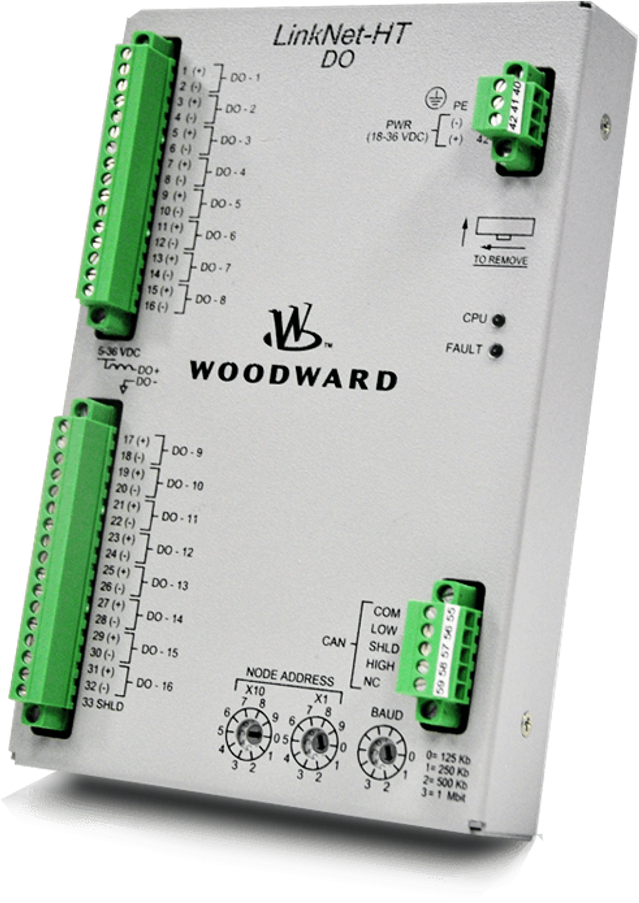

| 8200-1205 | YES | DO – 16 channel | HT (Simplex CAN |
| 8200-1105 | YES | DO – 16 channel | RTC (Duplex CAN) |
| 8200-1151 | YES | TC – 8 channel – high accuracy (EGT) | RTC (Duplex CAN) |
Downloads
Technical documentation
Product specifications
- LINKNET DISTRIBUTED I O Network – Product Specification.pdfDownload PDF
Technical manuals
- RTCNET LINKNET HT NODES INSTALLATION and OPERATION MANUAL – Technical Manual.pdfDownload PDF
