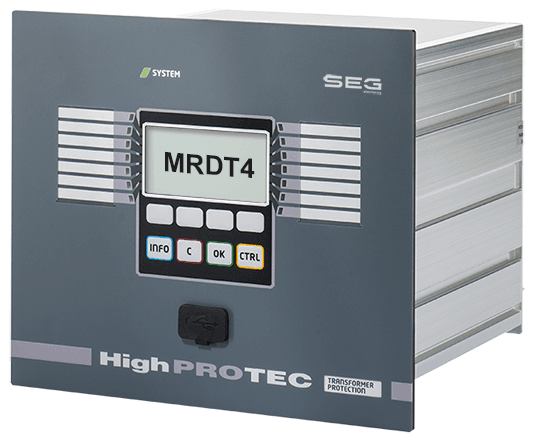

MRDT4-2 highPROTEC Series

Descrizione

Product overview

Built for dependable control and clear integration.

MRDT4 is tailored to transformer differential protection while providing communications and backup functions in the same relay. It can also protect generator-transformer units where the step-up transformer is included within the protection zone.

Configuration reference

Variant overview

Variant	At Stock	Hardware	Measurement	Housing type	Communication Ports	Environment
MRDT4-2A0AAA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for door mounting	Without protocol	Standard
MRDT4-2A0ABA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for door mounting	Modbus RTU, IEC 60870-5-103, DNP 3.0 RTU \| RS485/terminals	Standard
MRDT4-2A0ACA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for door mounting	Modbus TCP, DNP 3.0 TCP/UDP, IEC 60870-5-104 \| Ethernet 100 MB/RJ45	Standard
MRDT4-2A0ADA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for door mounting	Profibus-DP \| optic fiber/ST-connector	Standard
MRDT4-2A0AEA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for door mounting	Profibus-DP \| RS485/D-SUB	Standard
MRDT4-2A0AGA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for door mounting	Modbus RTU, IEC 60870-5-103, DNP 3.0 RTU \| RS485/D-SUB	Standard
MRDT4-2A0AHA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for door mounting	IEC 61850, Modbus TCP, DNP 3.0 TCP/UDP, IEC 60870-5-104 \| Ethernet 100MB/RJ45	Standard
MRDT4-2A0AIA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for door mounting	IEC 60870-5-103, Modbus RTU, DNP 3.0 RTU \| RS485/terminals, Modbus TCP, DNP 3.0 TCP/UDP, IEC 60870-5-104 \| Ethernet 100 MB/RJ45	Standard
MRDT4-2A0BAA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for 19'' rack mounting	Without protocol	Standard
MRDT4-2A0BBA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for 19'' rack mounting	Modbus RTU, IEC 60870-5-103, DNP 3.0 RTU \| RS485/terminals	Standard
MRDT4-2A0BCA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for 19'' rack mounting	Modbus TCP, DNP 3.0 TCP/UDP, IEC 60870-5-104 \| Ethernet 100 MB/RJ45	Standard
MRDT4-2A0BHA	NO	DI:8 DO:7	Standard Ground Current	Housing suitable for 19'' rack mounting	IEC 61850, Modbus TCP, DNP 3.0 TCP/UDP, IEC 60870-5-104 \| Ethernet 100MB/RJ45	Standard
MRDT4-2D0AAA	NO	DI:16 DO: 13	Standard Ground Current	Housing suitable for door mounting	Without protocol	Standard
MRDT4-2D0ABA	NO	DI:16 DO: 13	Standard Ground Current	Housing suitable for door mounting	Modbus RTU, IEC 60870-5-103, DNP 3.0 RTU \| RS485/terminals	Standard
MRDT4-2D0ACA	NO	DI:16 DO: 13	Standard Ground Current	Housing suitable for door mounting	Modbus TCP, DNP 3.0 TCP/UDP, IEC 60870-5-104 \| Ethernet 100 MB/RJ45	Standard
MRDT4-2D0AHA	NO	DI:16 DO: 13	Standard Ground Current	Housing suitable for door mounting	IEC 61850, Modbus TCP, DNP 3.0 TCP/UDP, IEC 60870-5-104 \| Ethernet 100MB/RJ45	Standard
MRDT4-2D0AIA	NO	DI:16 DO: 13	Standard Ground Current	Housing suitable for door mounting	IEC 60870-5-103, Modbus RTU, DNP 3.0 RTU \| RS485/terminals, Modbus TCP, DNP 3.0 TCP/UDP, IEC 60870-5-104 \| Ethernet 100 MB/RJ45	Standard
MRDT4-2D0ATA	NO	DI:16 DO: 13	Standard Ground Current	Housing suitable for door mounting	IEC 60870-5-103, Modbus RTU, DNP 3.0 RTU \| RS485/terminals IEC 61850, Modbus TCP, DNP 3.0 TCP/UDP, IEC 60870-5-104 \| Ethernet 100 MB/RJ45	Standard
MRDT4-2D3ABB	NO	DI:16 DO: 13	W1/W2 Sensitive Ground Current	Housing suitable for door mounting	Modbus RTU, IEC 60870-5-103, DNP 3.0 RTU \| RS485/terminals	Conformal Coating
